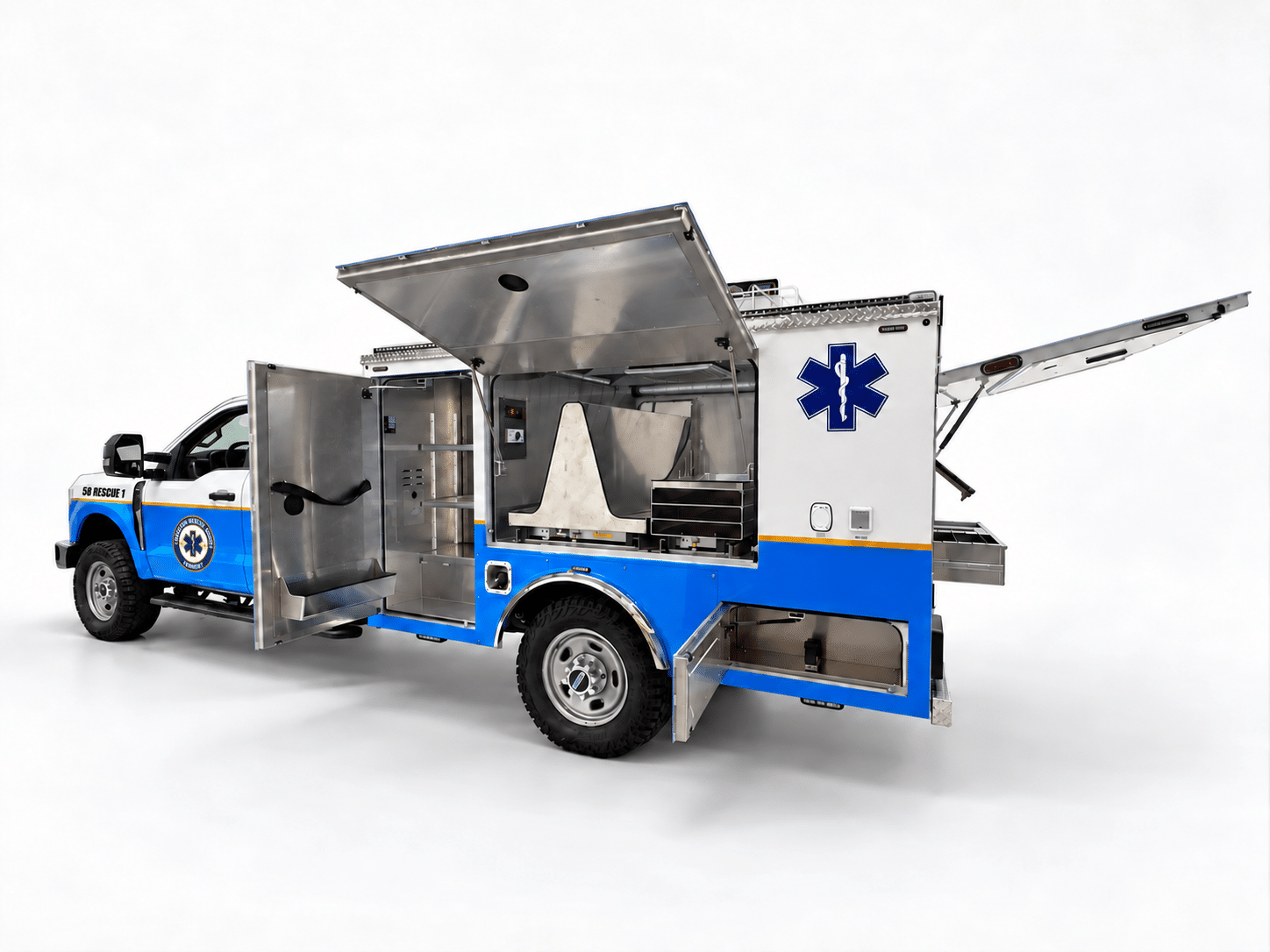

Custom Ford F-350 XMR (Custom Mini Rescue) EMS Response Truck for Grafton Rescue Squad

Built for Grafton Rescue Squad, Inc., this Ford F-350 combines FastLane’s custom aluminum custom XMR body with organized medical equipment storage, integrated communications, extensive scene lighting, and onboard power. Purpose-built compartments, slide-out trays, and a climate-controlled equipment body support efficient equipment access during EMS response and rescue operations.

Interested in learning more about a custom EMS XMR truck? Start a conversation with one of our build experts.

✅ Custom Aluminum XMR Body
✅ FastPlex™ Multiplex Electrical Controls
✅ Custom Floor and Overhead Consoles
✅ Pull-Out and Tip-Down Equipment Trays
✅ Dual-Direction Storage Slides
✅ 3,000-Watt Inverter/Charger
✅ Rooftop Air Conditioning with Heat Pump
✅ Integrated Warning and Scene Lighting

Emergency Vehicle Overview

Chassis

• Make/Model: Ford F-350
• Application: EMS response and rescue support
• Built For: Grafton Rescue Squad
• Body: Custom extruded aluminum XMR body with conventional compartment doors

Emergency Warning Package

Roof-Mounted Lightbar

• SoundOff Signal 54-inch nFORCE NXT lightbar
• Red/amber warning functions
• White warning introduced in drive or park override
• Steady-white scene-light capability

Rear Traffic Advisor

• SoundOff Signal mPower eight-module traffic system
• Amber directional traffic advising
• Red/amber warning and white scene-light functions

Perimeter Warning Lighting

Front and Side Lighting

• Four grille-mounted mPower warning lights
• Front and rear fender warning lights
• Upper-body and lower front bumper warning lights
• Dual-color running-board lighting
• White lighting for scene illumination and selected door-open or turn-signal functions

Rear Lighting

• Red/amber/white body-mounted warning lights
• Integrated stop, tail, turn, and backup lighting
• Additional warning lights visible when the rear liftgate is open

Programmable Operation

• Vehicle-state-based warning patterns
• White warning drop-out in park, with override capability
• Selectable steady-white scene lighting

Siren and Audible Warning System

• 200-watt full-function siren with removable microphone
• Two SoundOff Signal 100-watt speakers
• 102 dB reverse alarm with momentary cancel override

Scene and Work Lighting

• Two Whelen Arges remote-controlled spotlights
• Four roof-edge LED lightbars over the side compartment doors
• Front bumper LED lightbar and four recessed work-light pods
• Eight ground and underbody lights
• Dedicated door and compartment lighting
• Two red/white cab map lights

Custom Command Console

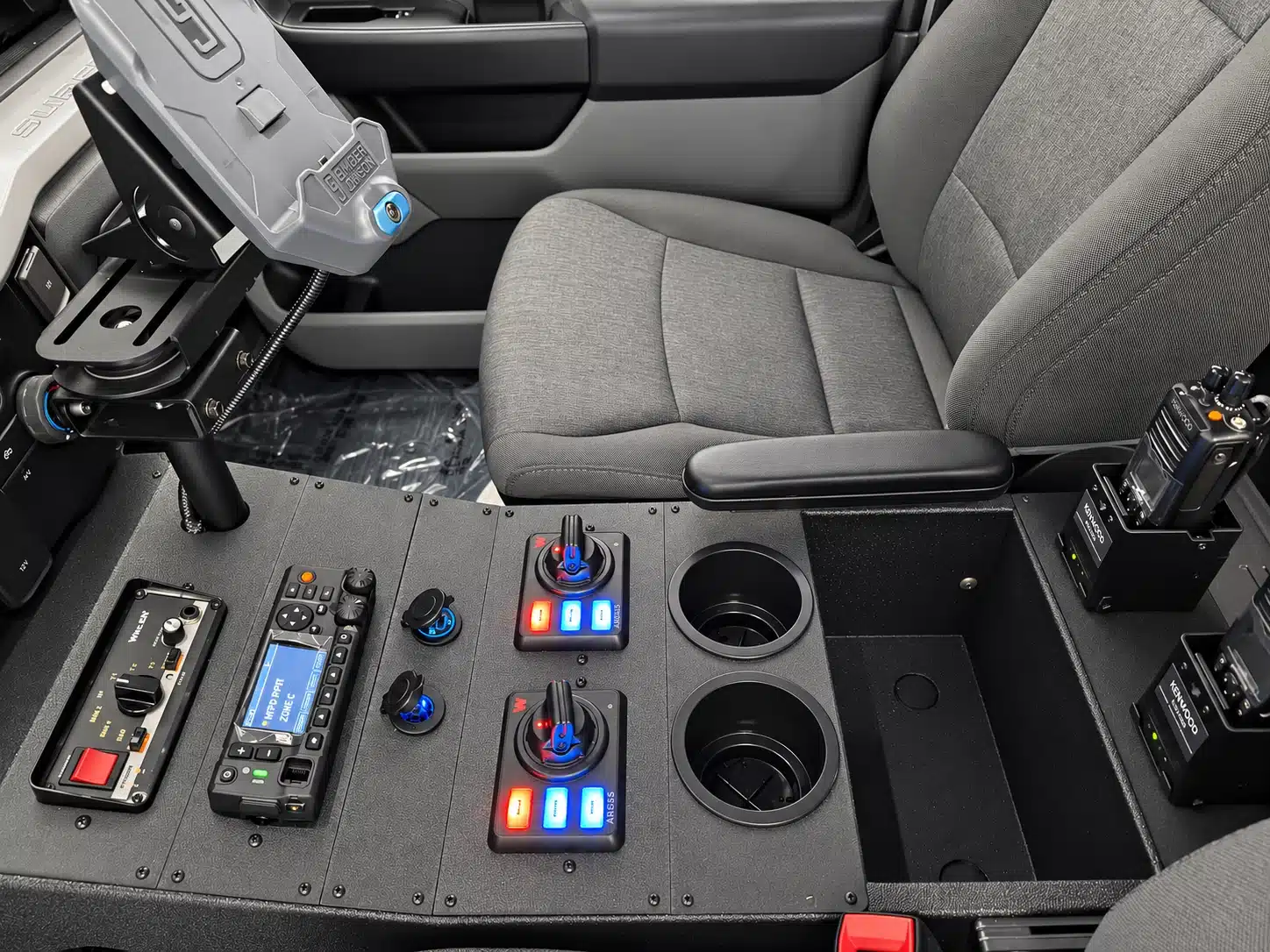

Full-Floor Console

• Integrated emergency-system and communications controls
• Two oversized cup holders
• Two adjustable padded armrests
• 12V outlet and USB-A/USB-C charging
• CNC-machined aluminum faceplates
• Durable black polyurea-coated console construction

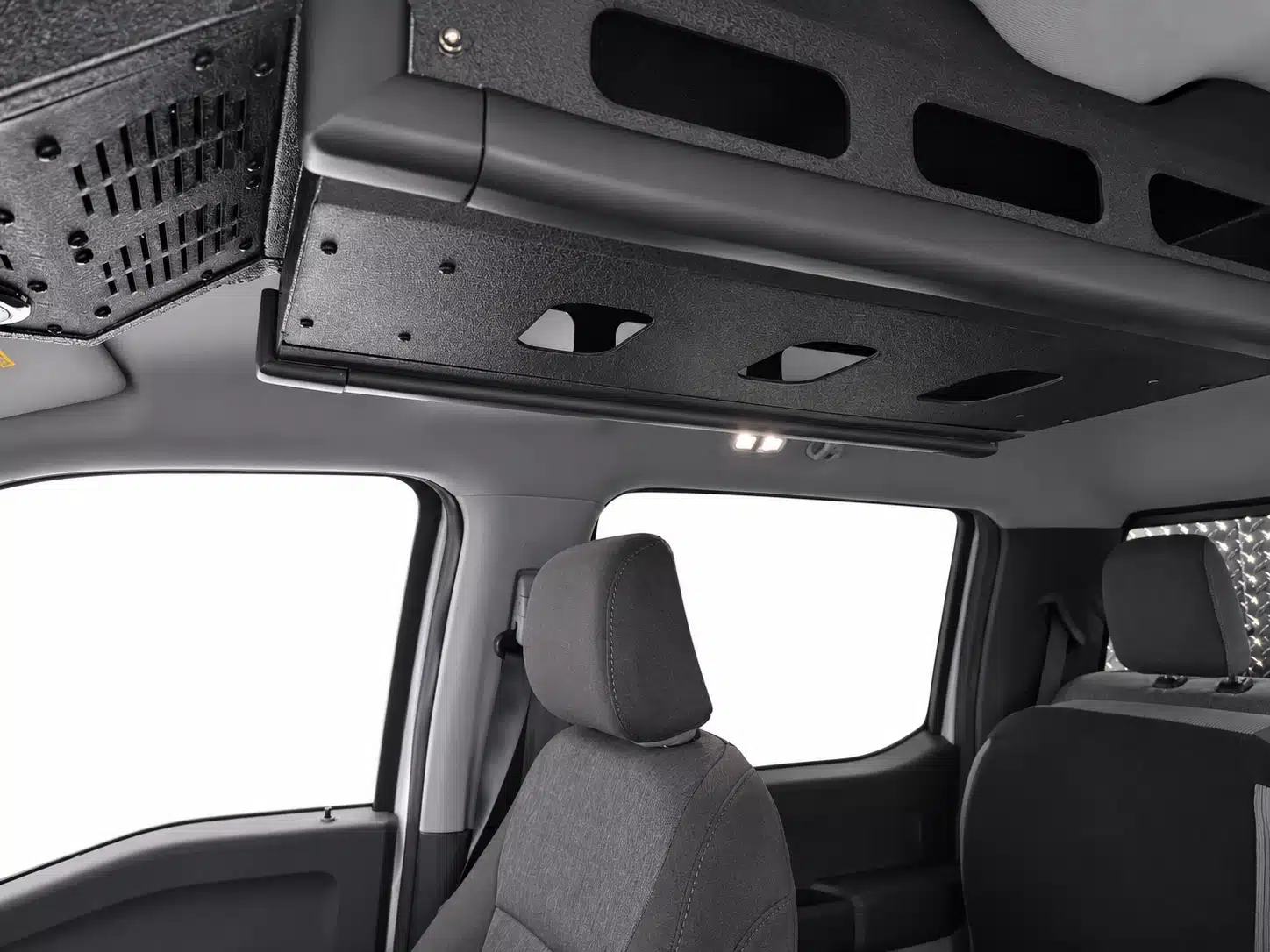

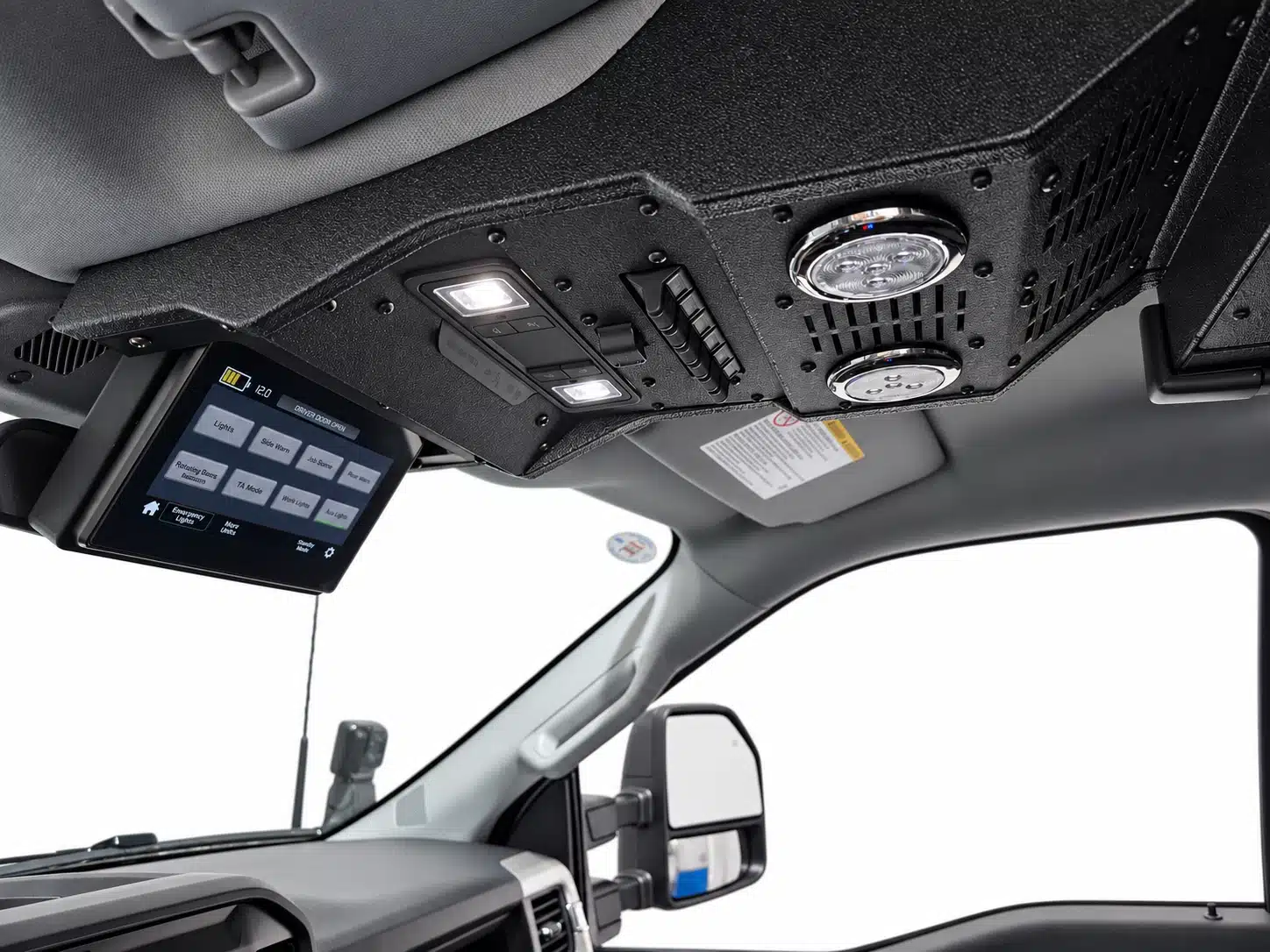

Overhead Console

• Custom overhead control console
• Integrated glove storage compartments

Communications and Mobile Technology

• Installation of customer-supplied radio equipment specified as Kenwood KCH-20R
• Two customer-supplied portable radio chargers
• Two antenna coax runs with roof-mounted NMO connections
• Magnetic microphone clips
• Gamber mounting pole for a customer-supplied mobile computer
• Integration of customer-supplied Starlink satellite equipment

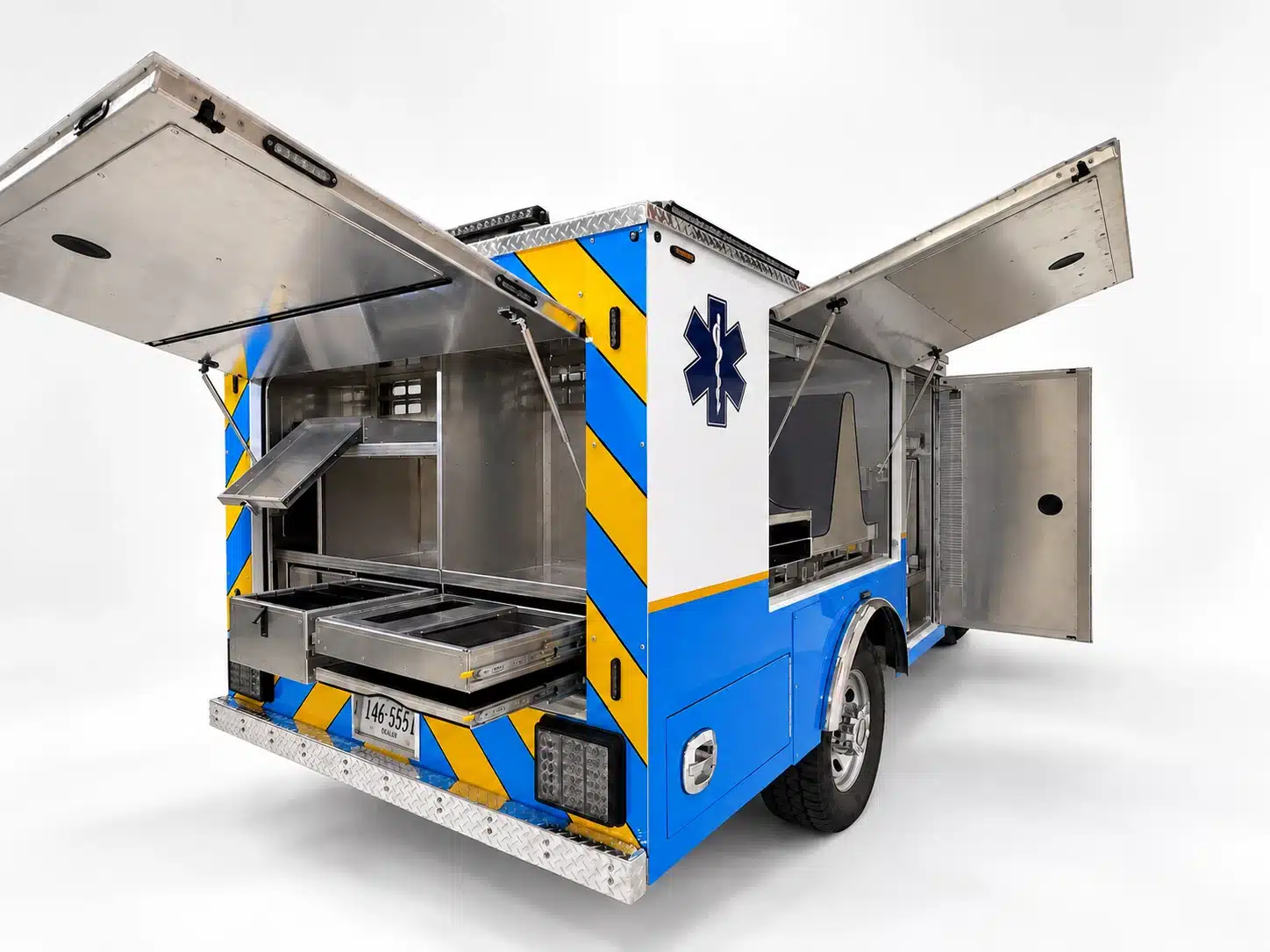

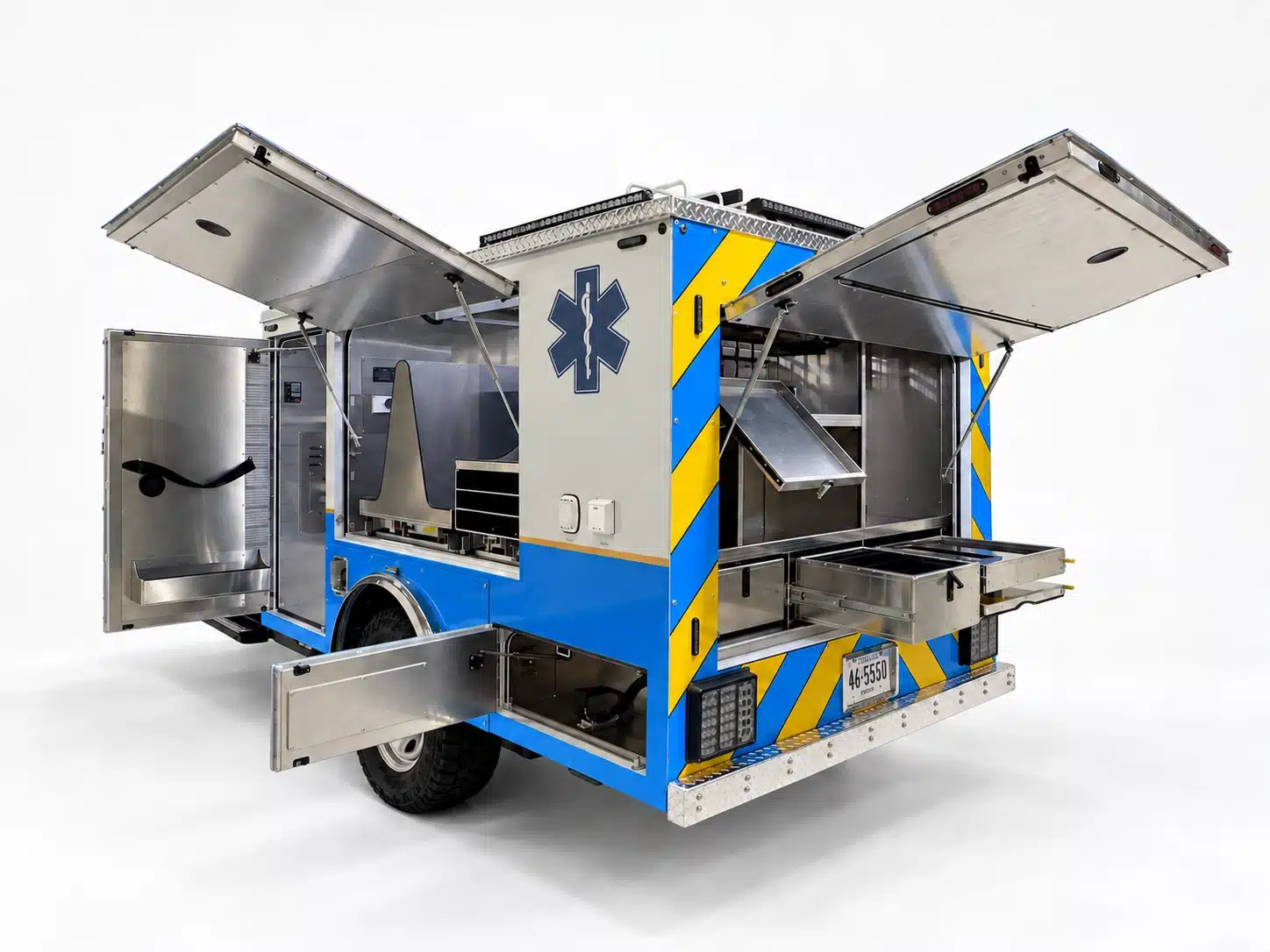

XMR Body and Equipment Storage

Custom Aluminum Body

Purpose-built compartmentation organizes medical supplies, rescue equipment, and operational accessories for access from multiple sides of the vehicle.

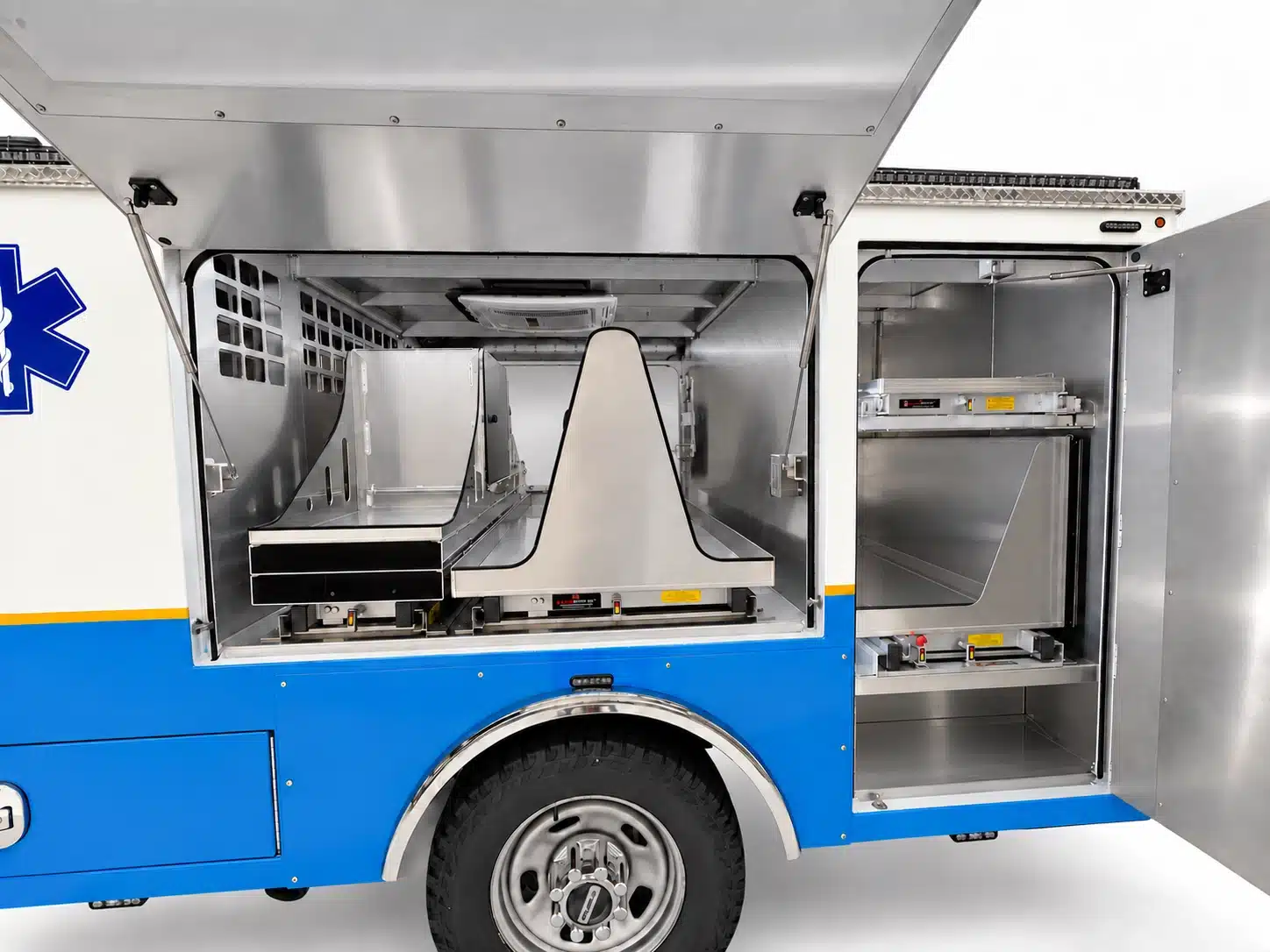

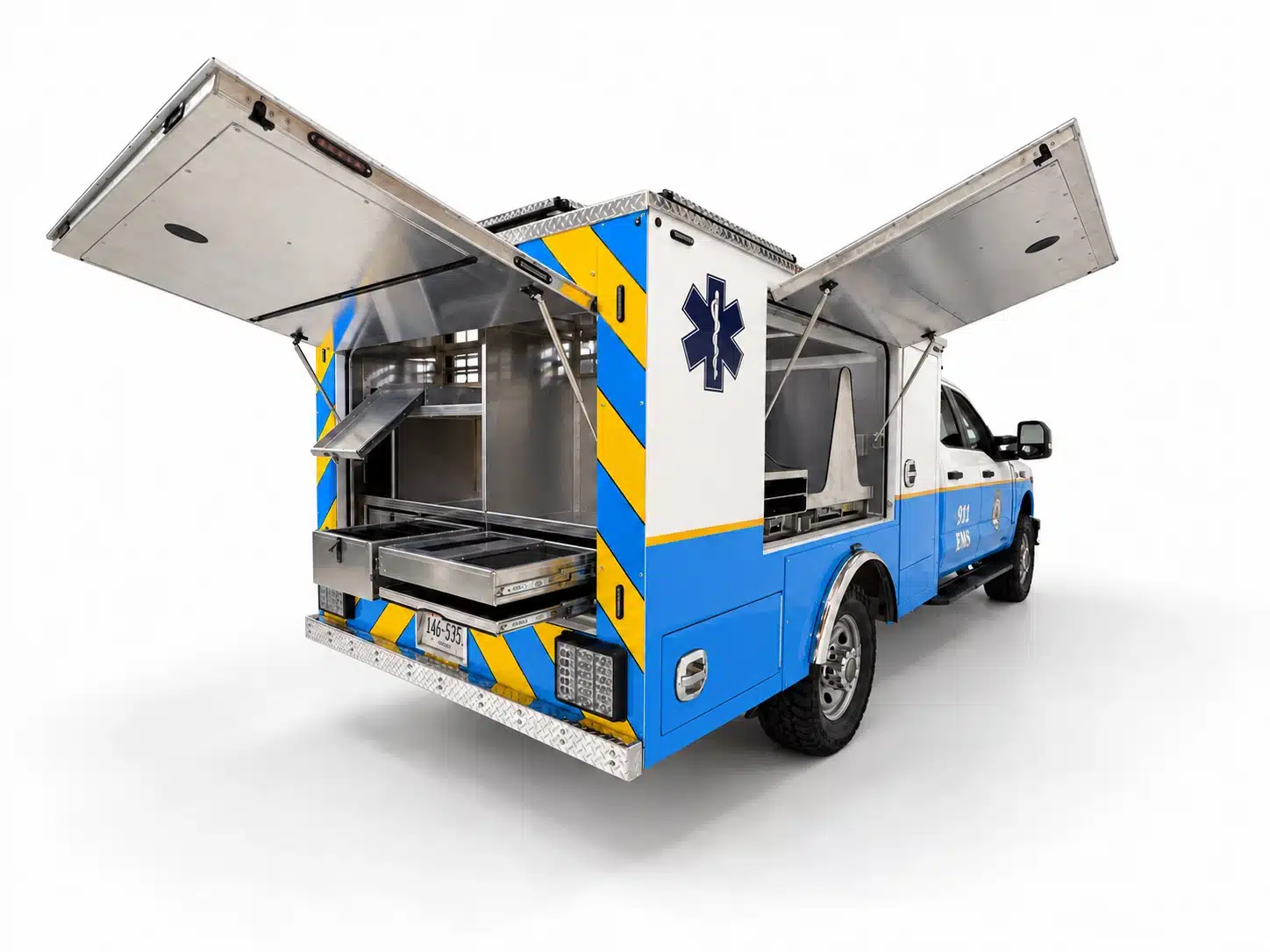

Storage Features

• Adjustable aluminum shelving
• Heavy-duty locking roll-out trays

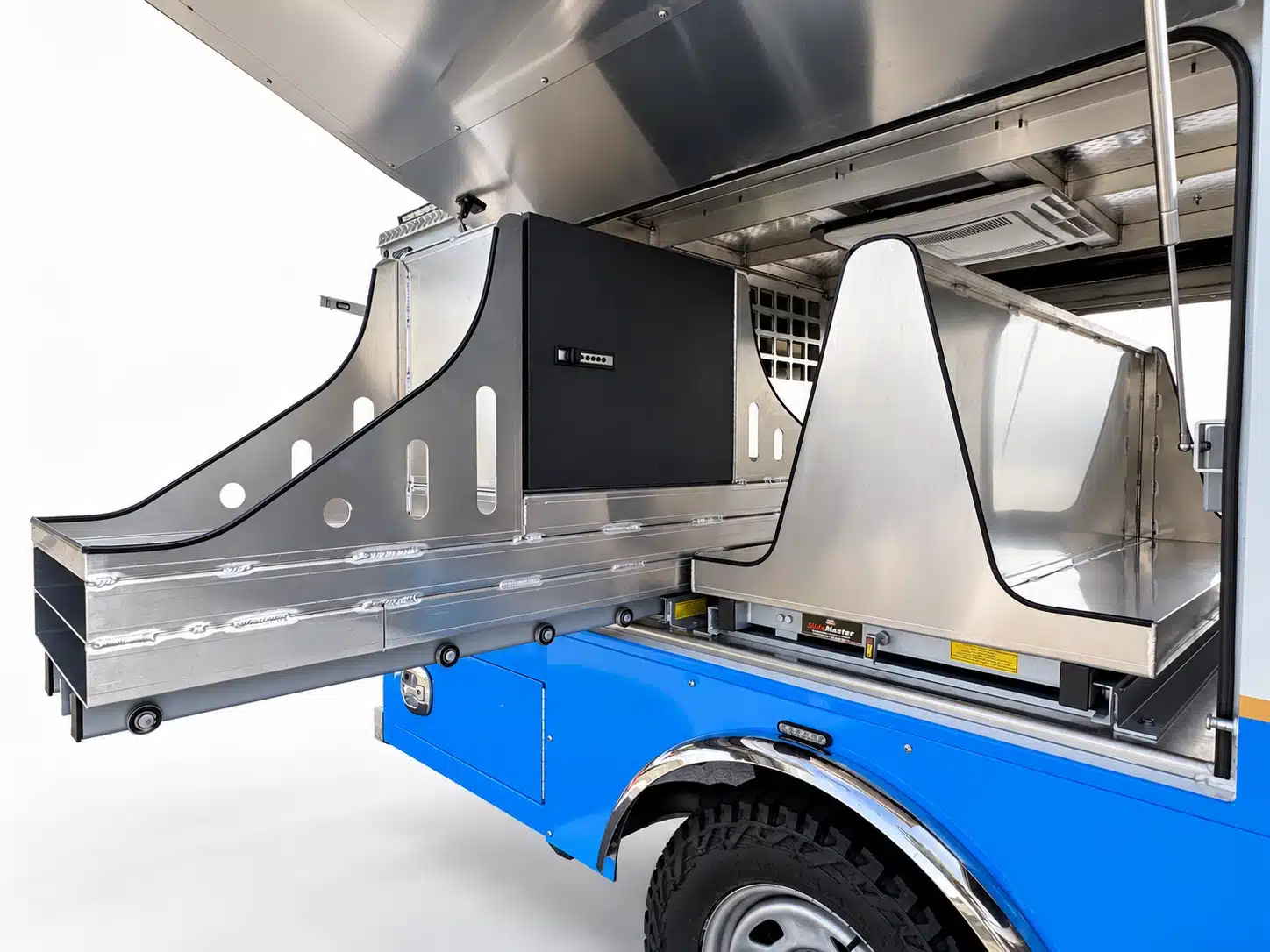

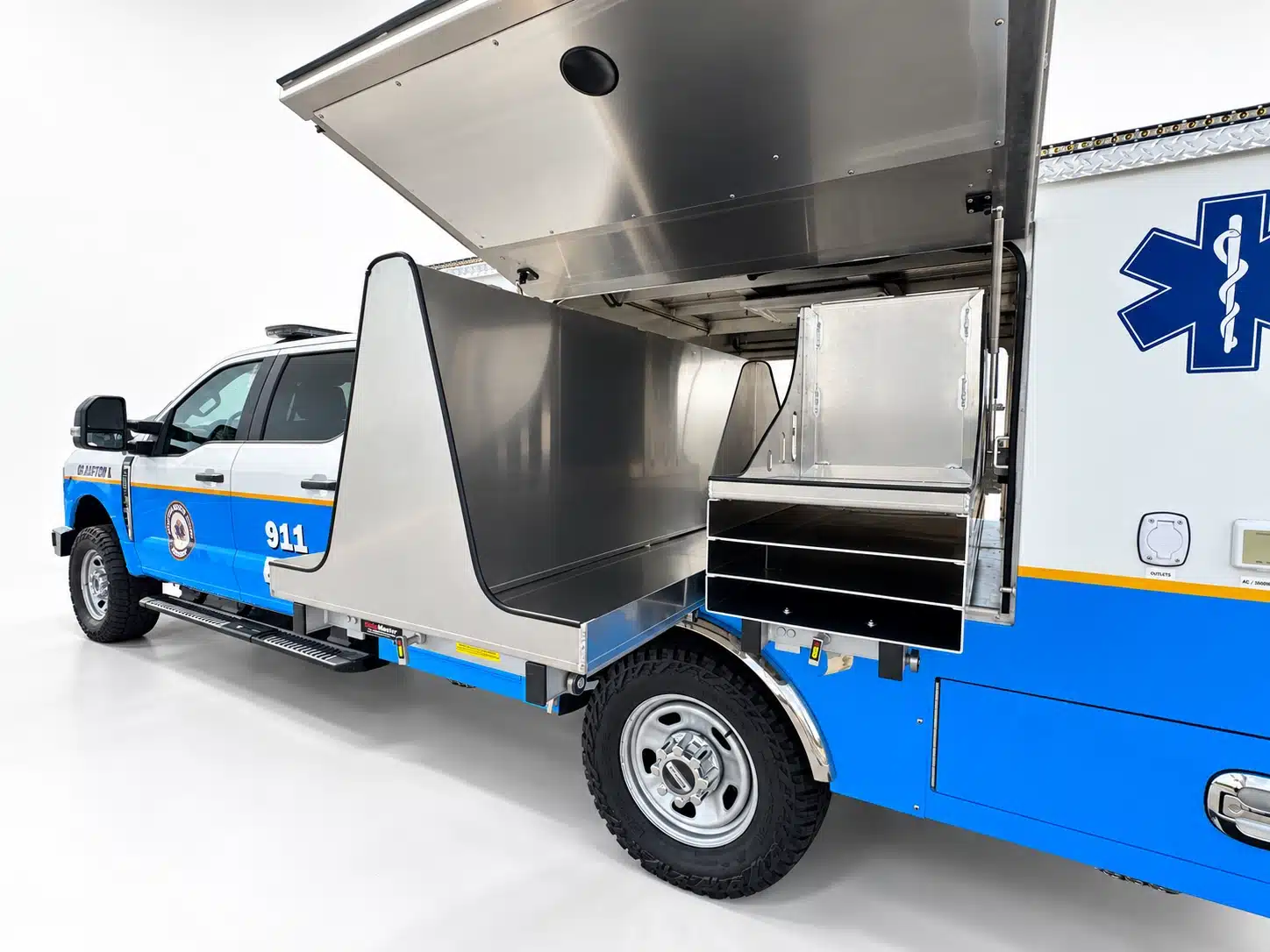

• Two pull-out, tip-down trays

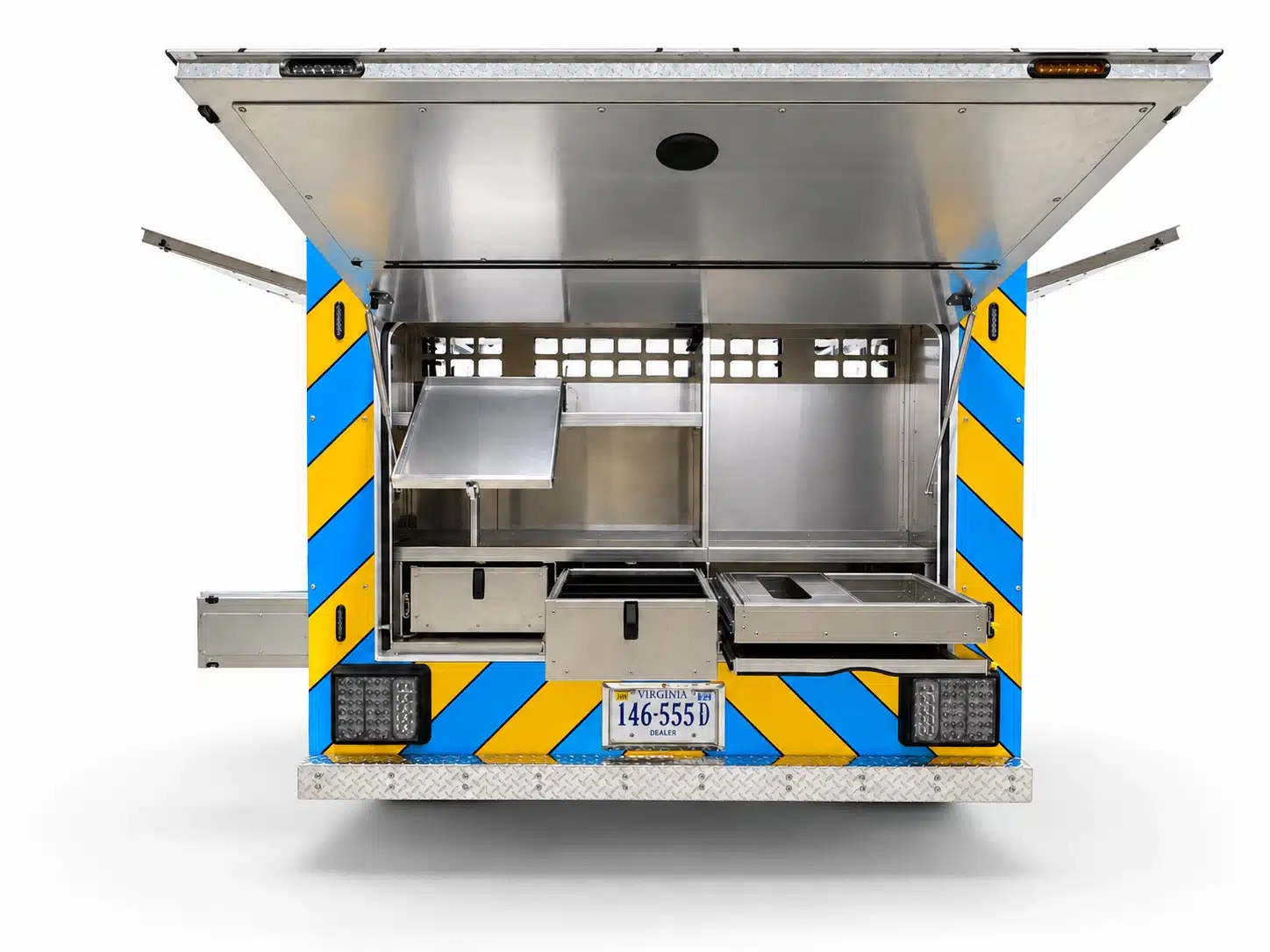

• Exterior drawers with equipment dividers

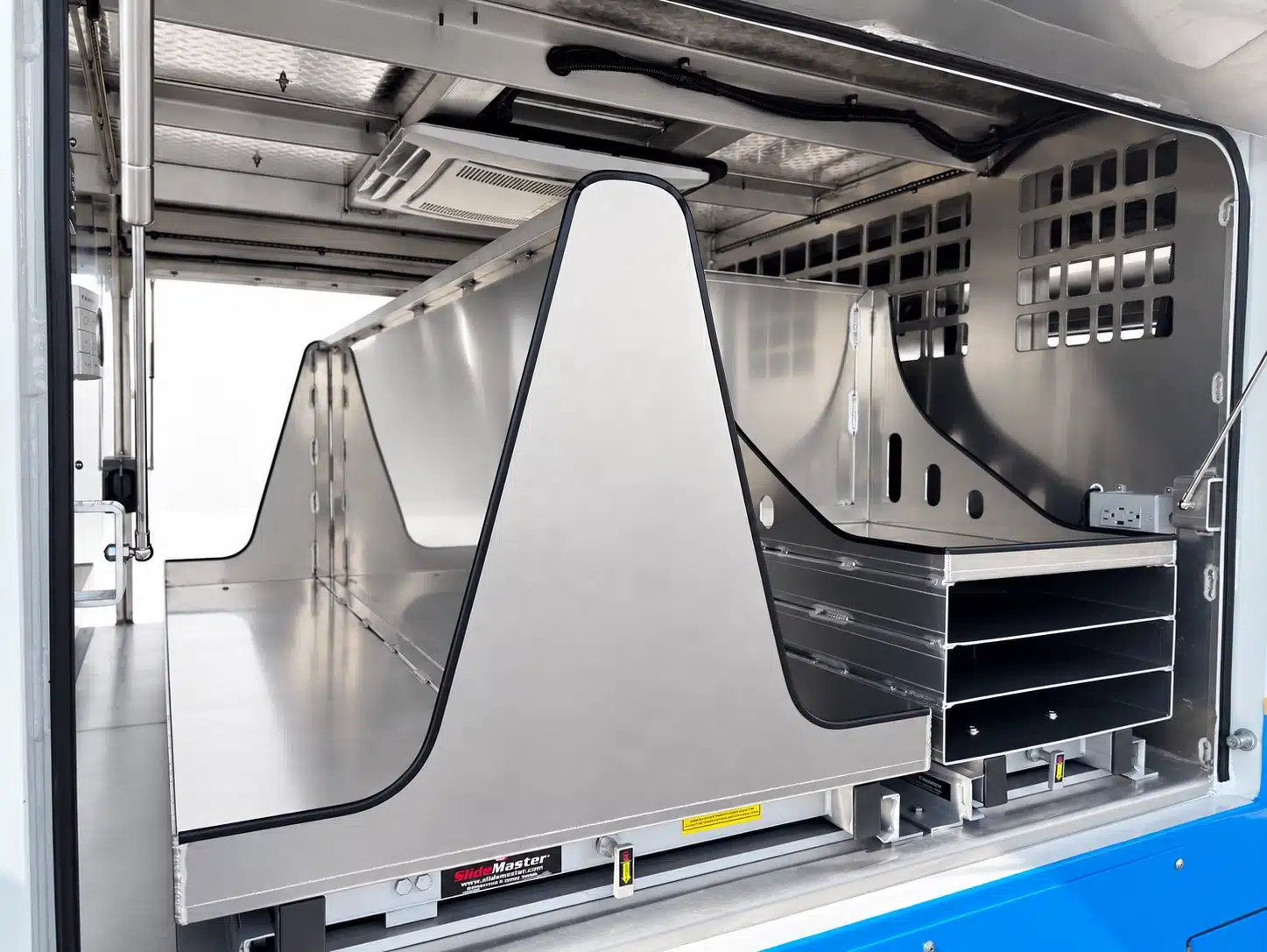

• Two dual-direction trays in the transverse compartment
• Dedicated backboard storage
• Pull-out work surface
• Cable-management systems serving powered trays

Medical Equipment Organization

• Cylinder storage module with locking door
• Three cylinder mounting systems
• Triple glove-box dispenser
• Custom stair-chair mounting provisions

Exterior Accessories

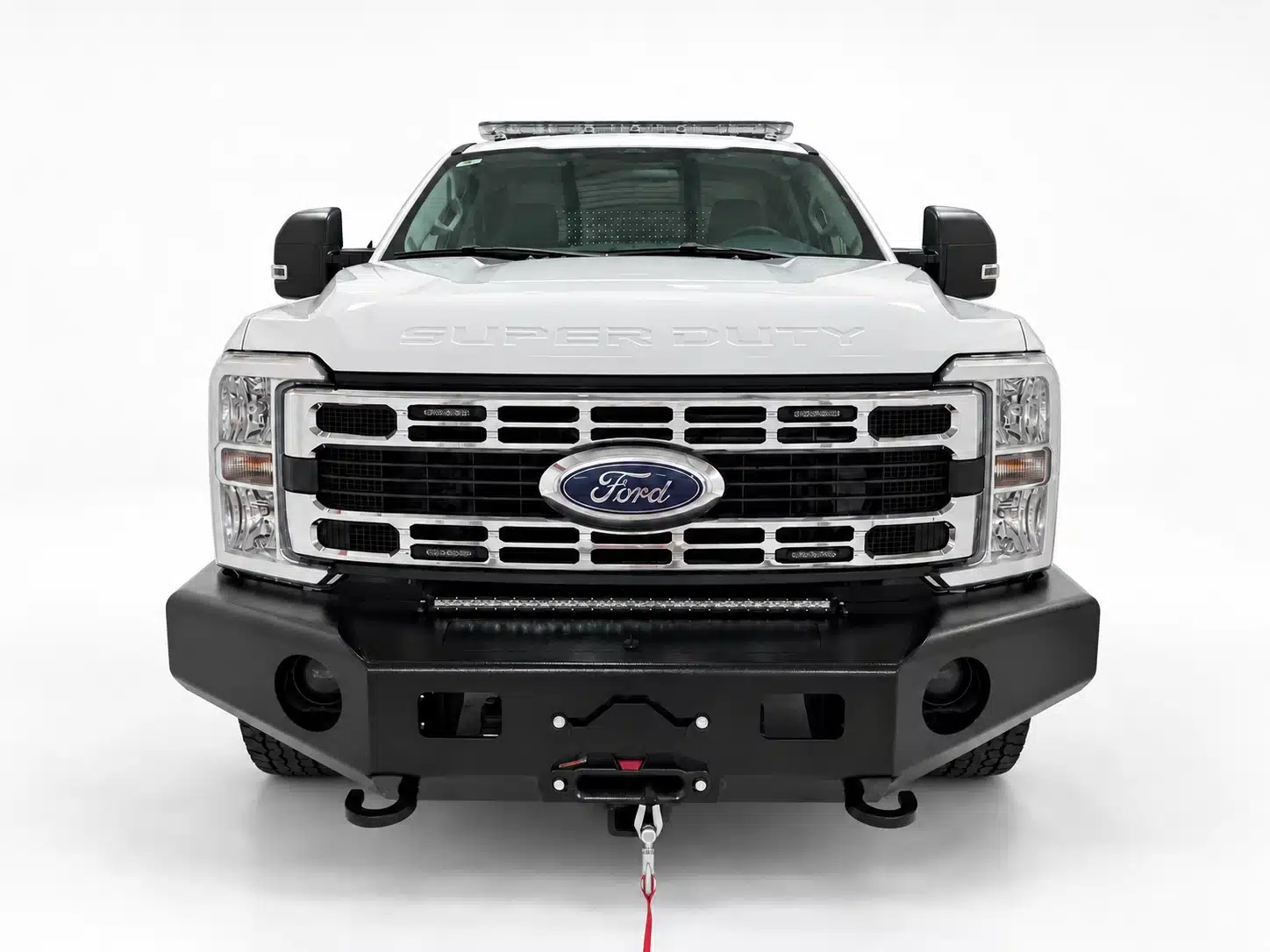

• Buckstop front bumper with recessed lighting and hidden winch installation
• WARN VR EVO 12-S winch
• Baja Boss A/T tires
• Class V trailer hitch with 2-inch receiver
• Recessed body tow eyes
• Two rubber wheel chocks

Electrical and Power Management

FastPlex™ Controls

• CAN-BUS multiplex electrical system
• Specified 7-inch wide-format touchscreen
• Solid-state switching and circuit protection
• Programmable functions and load management
• System-status feedback
• Electrical enclosure beneath the rear crew seating

Onboard Power

• Xantrex Freedom XC Pro 3,000-watt inverter/charger
• 45-amp vehicle battery charger
• 20-amp auto-eject shoreline connection
• Additional 30-amp shore-power inlet
• Compartment GFCI receptacles
• Body-mounted 12V accessory sockets
• AC outlets with USB-A and USB-C charging

Equipment Body Climate Control

• Dometic Penguin II 15,000 BTU rooftop air conditioner with heat pump
• Interior body ductwork
• Protective rooftop brush guard

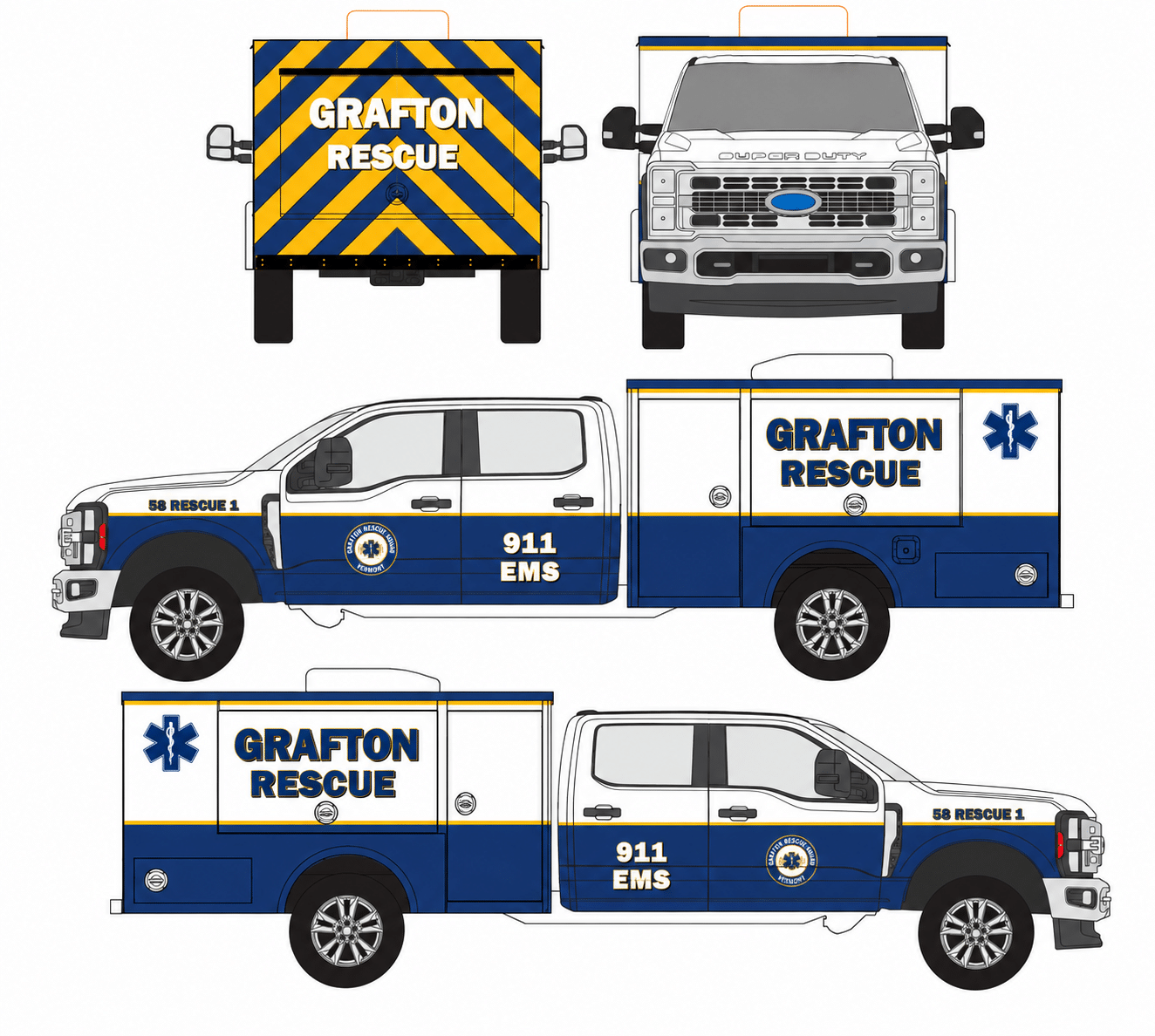

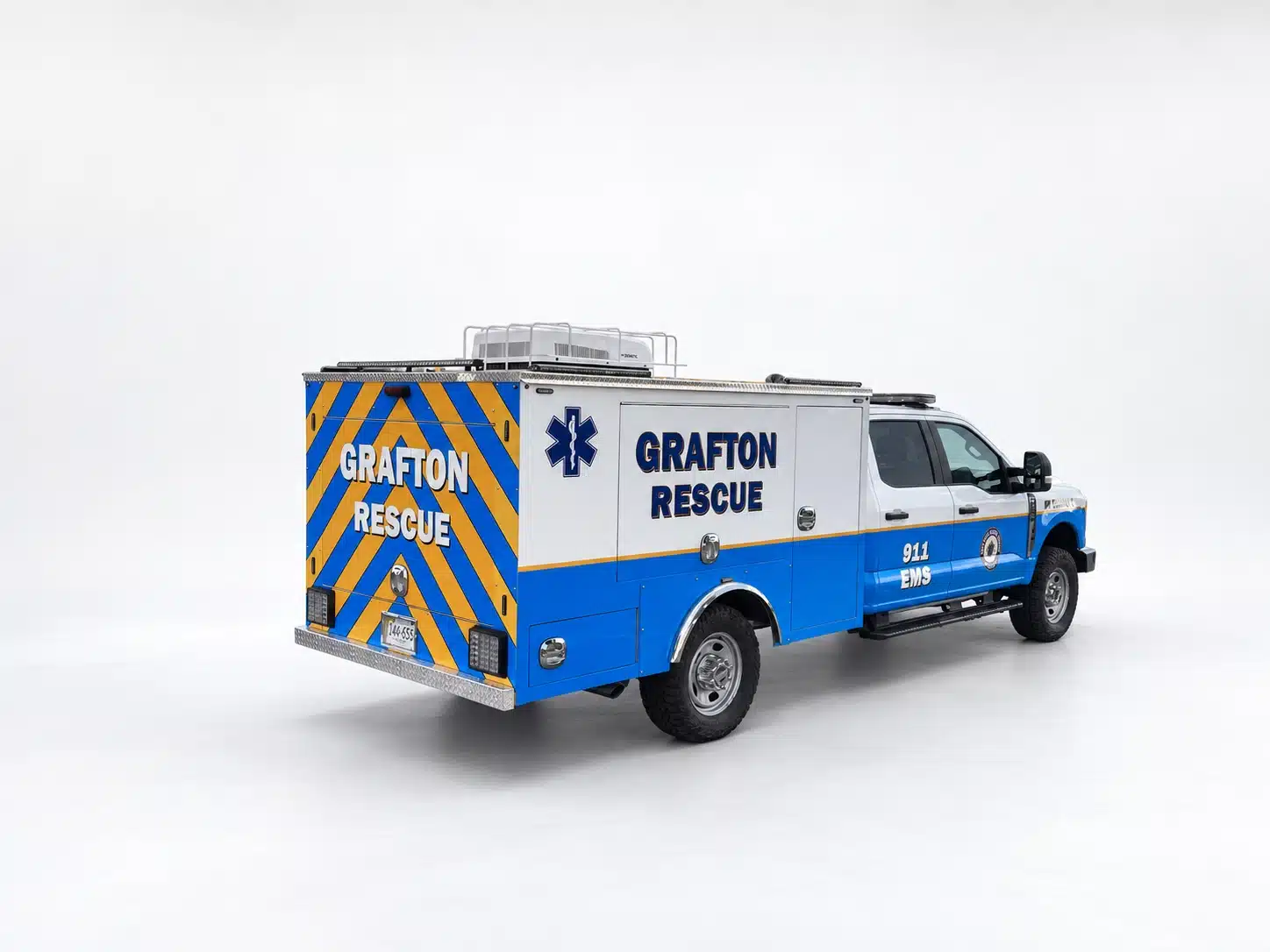

Graphics and Identification

• Custom two-tone cab and body paint
• Reflective Grafton Rescue lettering
• “58 – RESCUE 1” unit identification
• EMS and 911 markings
• Reflective Star of Life graphics
• Department emblems and custom striping
• Rear visibility chevrons

Build Information and Contact

Have a response vehicle project in mind? Let’s talk.

• Built For: Grafton Rescue Squad
• Job Number: 91018
• Sales Representative: Ken Flynn
• Build Team: Bradley Grubb, Matt Milburn, Mason Wells, Tyler McKinney, Matt Branco, Joel Ortiz

Why Choose a Ford F-350 XMR EMS Response Truck?

This configuration brings dedicated equipment storage, scene illumination, communications, and onboard power together in a pickup-based response vehicle. The custom XMR body provides organized access to medical and rescue equipment, while pull-out trays and work surfaces support personnel during incident operations.

Agencies Suited to This Configuration

• Rescue squads: Medical equipment transport and rescue support
• EMS agencies: Supervisor response, field support, and special events
• Fire departments: EMS response and specialized equipment deployment
• Emergency management teams: Incident support and communications
